BMP511.S/LPG and BMP522.S/LPG

Tatsuno-Benc Dispensers

Basic information

The LPG dispensers TATSUNO BENČ serve for dispensing of liquefied propane-butane (LPG) on filling stations for road vehicles. BMP 511/LPG SHARK dispensers are of one-sided or double-sided, single-hose design and BMP 522/LPG SHARK dispensers are of double-hose design; two cars can be filled simultaneously from both hoses. The LPG dispensers are equipped by the high-quality Japan hydraulic system TATSUNO and by the reliable electronic calculator PDE (Czech Republic). The LPG dispensers are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, sum and price are transmitted to POS. TATSUNO BENČ BG-16 console can be used for fuel dispenser controlling or the fuel dispensers can be connected directly to the filling station control system.

Specification

  • Hydraulics - pumping monoblocks and piston meters TATSUNO (Japan)
  • Reliable electronic counter
  • LCD displays (6-6-6) with controlled LED backlight
  • Modern compact design with fibreglass covers
  • Two- channels pulse generators TATSUNO (Japan)
  • Two types of electronic registers for every dispensing nozzle - non resettable
    register for litres and daily registers for litres and amount (zero adjustable)
  • Non resettable electromechanical litres register for every dispensing nozzle
  • Infra-red remote controller for fuel price setting, for electronic registers reading,
    for user's functions operating and dispensing pump setting
  • Dispensing nozzles BREVETTI NETTUNO (Italy)
  • Dispensing hoses SEMPERIT or ZVA-ELAFLEX (Germany)
  • Manometer
  • Sight glasses for fuel flow check (on request)
  • Controlling electromagnetic valves for accurate dispensing of preselected amount
    or fuel volume (on request)
  • Four buttons keypads for dispensing according to preselected amount or fuel
    volume (on request)
  • IFSF-LON or IFSF-TCP/IP data communication (on request)
  • Automatic Temperature Correction - ATC (on request)
  • Various builded credit modules for local credit cards/chips (on request)
  • Possibility to integrate LPG module into fuel dispensers series BMP 2000 SHARK
  • Dispensers versions with volume displays only
  • Various colour performance - on customer's request

Technical specification

Pumping output:  50 dm3.min-1
Accuracy of pumping: ±0.5%
with minimum dispensed volume 5 dm3
Maximum operating pressure: 1.8 MPa (18 bar)
Measured liquid: liquid propane-butane (LPG)
Electric motors: three-phase, 3 x 400 V / 50 Hz,
0.75 kW, 1395 rpm
Counter power supply: 230V AC, +10% -15%, 50Hz,
50VA
Power supply for motor contactors and valve switching: 230 V AC, 50 Hz
Operating temperature range: -40 °C   +50 °C

Schemes

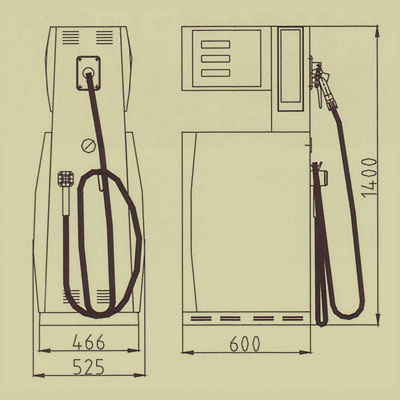

BMP511.SD/LPG

two sided dispenser
one product
1 nozzle
height: 1400 mm

one sided verisons:
BMP511.SL - left
BMP511.SR - right

BMP522.SD/LPG

two sided dispenser
two products
2 nozzles
height: 1400 mm

One sided versions:
BMP522.SL/LPG - left
BMP522.SR/LPG - right

LPG moduls integrated into BMP 2000 series

Bulletin

Bulletin (PDF file)
